Ultraviolet Transmitting Visible Absorbing Filter

Description

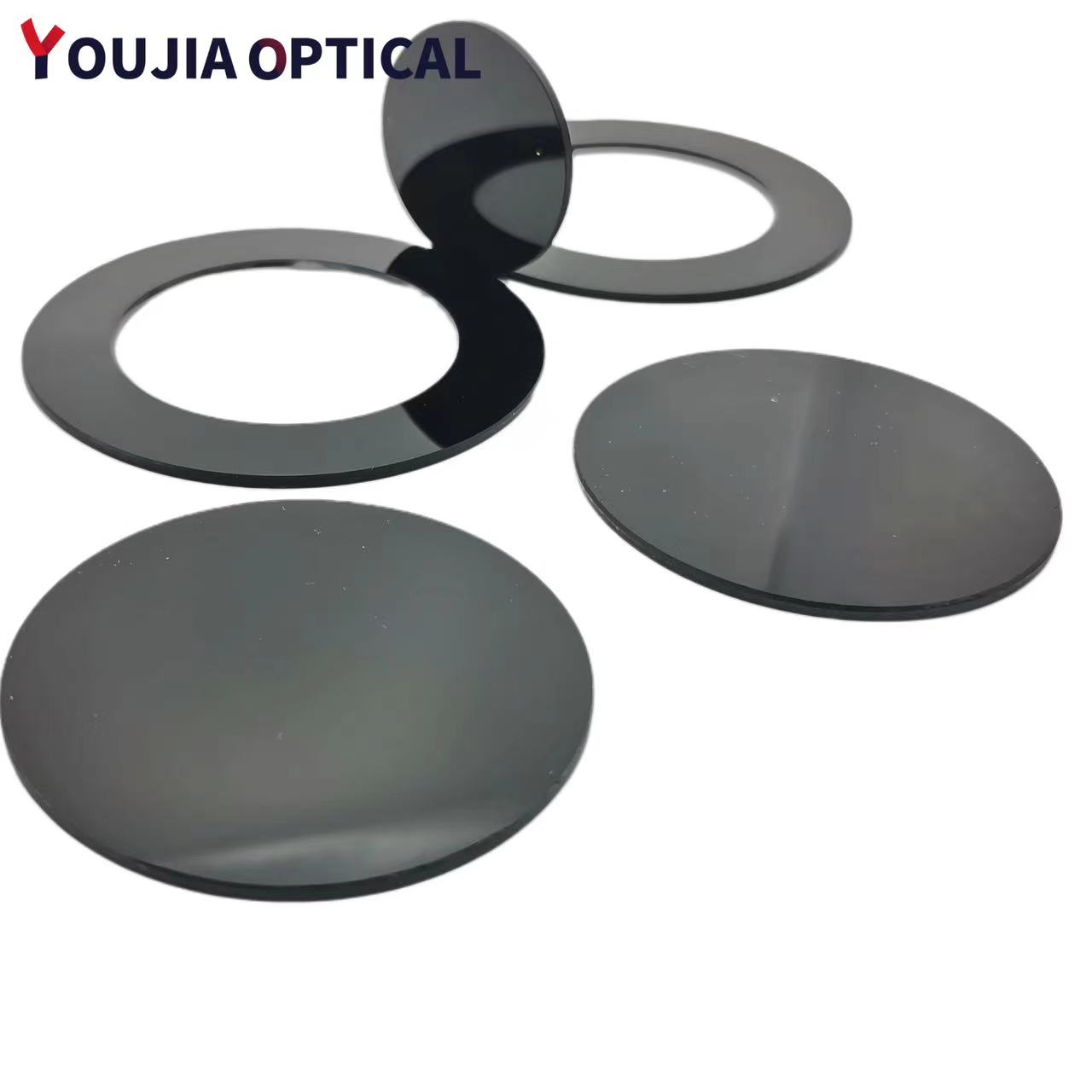

Ultraviolet Transmitting Visible Absorbing Filter transmits the ultraviolet region but absorb the visible region. The filters are UV black ultraviolet glass primarily used for single extraction of ultraviolet rays. They are often utilized for selectively transmitting the 253.7nm, 254nm, 310nm and 365nm wavelengths, which includes the representative line spectra of mercury lamps. Used in medical applications, inspection devices, scientific instruments, gel imaging and analysis systems. They are also very popular with medical and analytical instruments and used for UV light source filters.

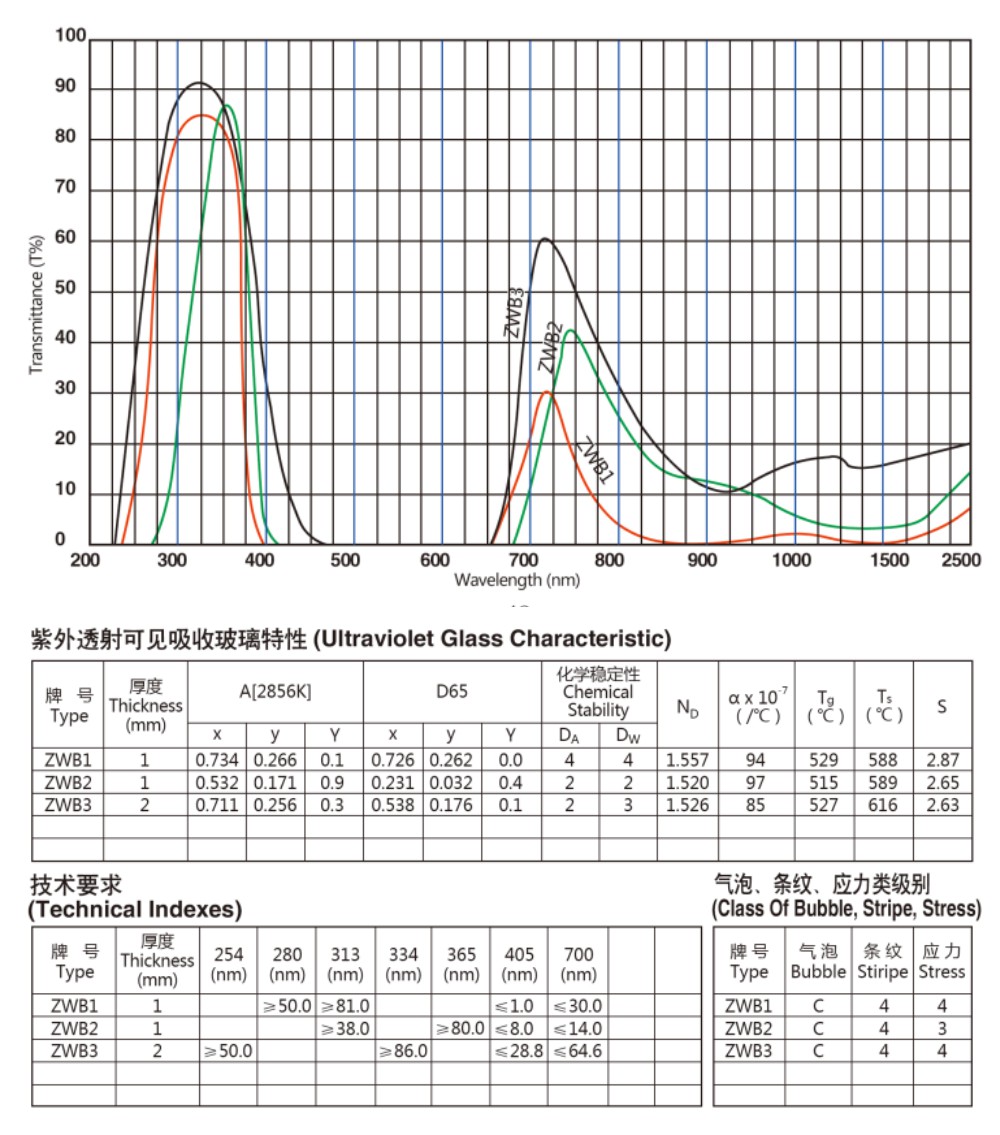

ZWB1

ZWB1 is a UV transmission visible absorption filter. It can filter out visible light greater than 400nm and has a high transmittance in the ultraviolet band of 220nm-400nm. The peak wavelength is 313nm, with a thickness of 1 The transmittance at mm is greater than 81%. This filter is widely used in optical equipment, such as irradiators, imagers, medical instruments, and research institutes.

ZWB2

ZWB2 is a type of UV transmission visible absorption filter. It can filter out visible light greater than 450nm and has a high transmittance in the ultraviolet band of 265nm-410nm. The peak wavelength is 365nm, and the transmittance is greater than 80% when the thickness is 1mm. This filter is widely used in ultraviolet optical systems, such as optical lenses, meteorological equipment, and industrial detection.

ZWB3

ZWB3 is a UV transmission visible absorption filter. It can filter out visible light greater than 410nm and has a high transmittance in the ultraviolet band of 210nm-410nm. At a thickness of 2mm, the transmittance at 254nm is greater than 34%, and the transmittance at 334nm is greater than 86%,. This filter is widely used in fields such as photography, paper inspection, and microscopy.



Models of  UV Transmitting Visible Absorbing Filter:

ZWB1/UG11/U-340

ZWB2/UG1/U-360

ZWB3/UG5/U-330

YOUJIA OPTICAL’s main products include various optical components such as colored optical glass filters, color filters, optical lenses, and dust-proof lenses. Who offer a wide range of optical parts, including:

1. UV-transmitting visible-absorbing glass
2. UV-transmitting black glass
3. Near-infrared glass
4. Infrared-transmitting glass
5. Infrared-transmitting visible-absorbing glass
6. Purple glass
7. Cyan-blue glass
8. Green glass
9. Golden-yellow glass
10. Orange glass
11. Red glass
12. Protective glass
13. Heat-insulating glass
14. Skylight glass
15. Color temperature-raising glass
16. Color temperature-lowering glass
17. Wavelength calibration glass
18. Yellow glass
19. UV glass
20. Neutral density glass
21. Clear optical glass
22. K9 glass
23. Quartz glass
24. Milk-white glass
25. UV glass and infrared glass lenses
26. Quartz glass heat-insulating glass lenses
27. Bandpass glass neutral gray glass plates
28. Skylight glass plates and milk-white glass plates
29. Polarizing mirror vacuum mirror-coated glass plates
30. Anti-radiation wavelength calibration lenses
31. B270 glass lenses
32. Protective glass mirrors
